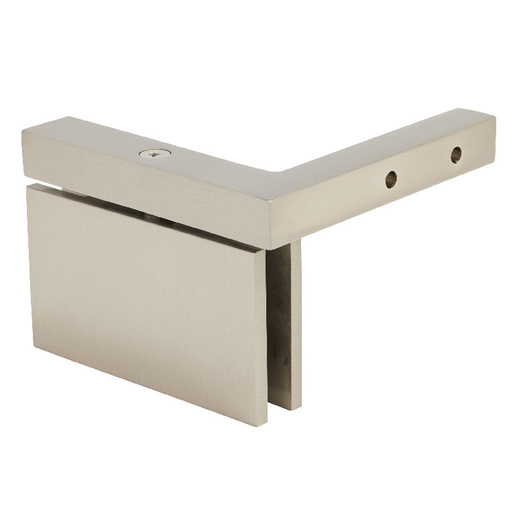

CRL Brushed Nickel Senior Cardiff Wall Mount Offset Back Plate Hinge

Finish : Brushed Nickel

Handing : Right Hand

Left Hand

Right Hand

Item #: SRCAR05RBN
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL Brushed Nickel Senior Cardiff Wall Mount Offset Back Plate Hinge
×
CRL Brushed Nickel Senior Cardiff Wall Mount Offset Back Plate Hinge
Quantity Price
Product Details
  • Finish
    Brushed Nickle Anodized
  • Glazing Thickness
    1/2 IN
  • Handing
    Right Hand
  • Height (Inches)
    2-5/8
  • Material
    Brass
  • Max Dr Weight - 2 Hinges (Lbs)
    145
  • Maximum Door Width
    36
  • Mounting Type
    Wall Mount
  • Self-Centering
    Yes
  • Series
    Senior Cardiff
  • Width (Inches)
    4-3/4
Product Overview

Advantages of CRL Senior Cardiff Hinges include the fact that they carry the majority of the weight on the bottom, and have the ability to be inset from the wall, enabling clearance for towel bars and other projections. The Glass-to-Fixed Transom Mount Pivot Hinge is used for doors having fixed transoms above them. When placed vertically, either style can be used in movable transom installations. These Pivot Hinges are self-centering, with four springs for maximum retention strength.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting US Horizon Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Technical References
