CRL Brass Cologne 337 Series Adjustable Wall Mount 'H' Back Plate Hinge

Finish : Polished Brass

Adjustable : Yes

Yes

No

5 Degree Pre-Set : No

No

Item #: C0L337BR
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL Brass Cologne 337 Series Adjustable Wall Mount 'H' Back Plate Hinge
×
CRL Brass Cologne 337 Series Adjustable Wall Mount 'H' Back Plate Hinge
Quantity Price
Product Details
  • 5 Degree Pre-Set
    No
  • Adjustable
    Yes
  • Back Plate
    'H'
  • Edge Profile
    Beveled
  • Finish
    Polished Brass
  • Glazing Thickness
    3/8 To 1/2 IN
  • Height (Inches)
    3-15/16
  • Material
    Brass
  • Max Dr Weight - 2 Hinges (Lbs)
    110
  • Max Dr Weight - 3 Hinges (Lbs)
    140
  • Maximum Door Width
    36
  • Mounting Type
    Wall Mount
  • Self-Centering
    Yes
  • Series
    Cologne
  • Width (Inches)
    2-5/16
Product Overview

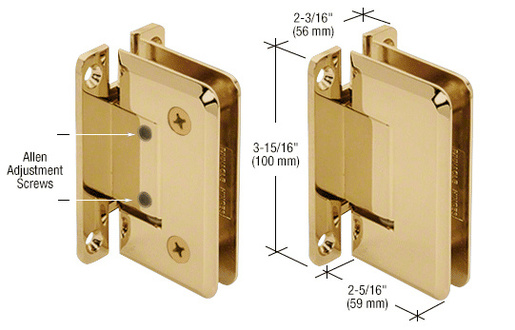

The CRL Adjustable Cologne Series has taken our popular Cologne Hinge to a new level. Adjustment to accommodate the desired angle (up to 90º) is done after the door is installed. Once the door is hung, simply loosen the Allen set screws and turn the door to the desired closed position. By merely tightening the Allen screws your door will self-center to the desired angle. The door can swing 90º inward and also 90º outward (adjusting angle from factory set position will reduce 90º swing in that direction). For doors pulling outwards only (using a clear door jamb), you can adjust the hinge to close 5º inside the shower area, thus having the door close snugly against the jamb.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting US Horizon Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
