CRL Polished Nickel Pinnacle 337 Series Adjustable Wall Mount 'H' Back Plate Hinge

Finish : Polished Nickel

Adjustable : Yes

Yes

No

5 Degree Pre-Set : No

Yes

No

Item #: P1N337PN
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL Polished Nickel Pinnacle 337 Series Adjustable Wall Mount 'H' Back Plate Hinge
×
CRL Polished Nickel Pinnacle 337 Series Adjustable Wall Mount 'H' Back Plate Hinge
Quantity Price
Product Details
  • 5 Degree Pre-Set
    No
  • Adjustable
    Yes
  • Back Plate
    'H'
  • Edge Profile
    Beveled
  • Finish
    Polished Nickel
  • Glazing Thickness
    5/16 To 1/2 IN
  • Height (Inches)
    3-1/2
  • Material
    Brass
  • Max Dr Weight - 2 Hinges (Lbs)
    80
  • Max Dr Weight - 3 Hinges (Lbs)
    120
  • Max Dr Width - 2 Hinges (Inch)
    28
  • Max Dr Width - 3 Hinges (Inch)
    32
  • Mounting Type
    Wall Mount
  • Self-Centering
    Yes
  • Series
    Pinnacle
  • Width (Inches)
    2-3/16
Product Overview

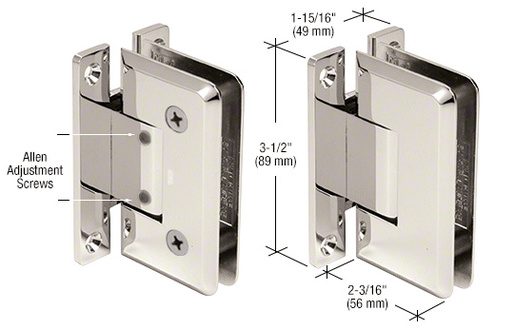

CRL Adjustable Pinnacle Series Hinges take our popular Pinnacle Hinge to a new level. Adjustment to accommodate the desired angle (up to 90 degree) is done after the door is installed. Once the door is hung, simply loosen the Allen set screws and turn the door to the desired closed position. By merely tightening the Allen screws your door will self-center to the desired closed position. The door can swing 90 degree inward and also 90 degree outward (adjusting angle from factory set position will reduce 90 degree swing in that direction). For doors pulling outwards only (using a clear door jamb), you can adjust the hinge to close 5 degree inside the shower area, thus having the door close snugly against the jamb.
