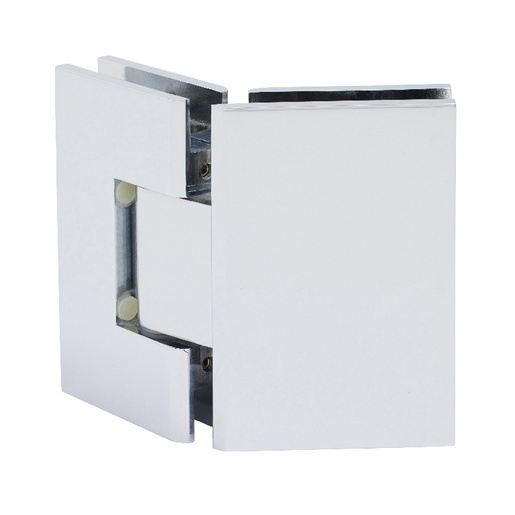

CRL Polished Chrome Vienna 135° Glass to Glass with 5° Offset Hinge

Finish : Polished Chrome

5 Degree Pre-Set : Yes

Yes

No

Item #: V1E545CH
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL Polished Chrome Vienna 135° Glass to Glass with 5° Offset Hinge
×
CRL Polished Chrome Vienna 135° Glass to Glass with 5° Offset Hinge
Quantity Price
Product Details
  • 5 Degree Pre-Set
    Yes
  • Adjustable
    No
  • Back Plate
    Offset
  • Edge Profile
    Square
  • Finish
    Polished Chrome
  • Glass To Glass Angle (Degrees)
    135
  • Glazing Thickness
    3/8, 1/2 IN
  • Height (Inches)
    3-15/16
  • Material
    Brass
  • Max Dr Weight - 2 Hinges (Lbs)
    110
  • Max Dr Weight - 3 Hinges (Lbs)
    140
  • Maximum Door Width
    36
  • Maximum Door Width - 1/2 Glass
    32
  • Maximum Door Width - 3/8 Glass
    34
  • Mounting Type
    Glass To Glass
  • Self-Centering
    Yes
  • Series
    Vienna
  • Width - Door Portion (Inches)
    2-1/4
  • Width - Sidelite Portion (Inch
    2-11/16
Product Overview

The CRL Vienna Series of professional Hinges is able to accommodate 3/8" (10 mm) to 1/2" (12 mm) glass. A variety of six styles gives design flexibility, including three different Wall Mount and three different Glass-to-Glass types. Vienna Hinges are self-centering and contain a Reversible 5 degree Pivot Pin. In addition, Custom Pivot Pins are available to accommodate "off-angle" installations. Made of solid brass with all moving parts (pins and springs) in stainless steel.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting US Horizon Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Technical References
