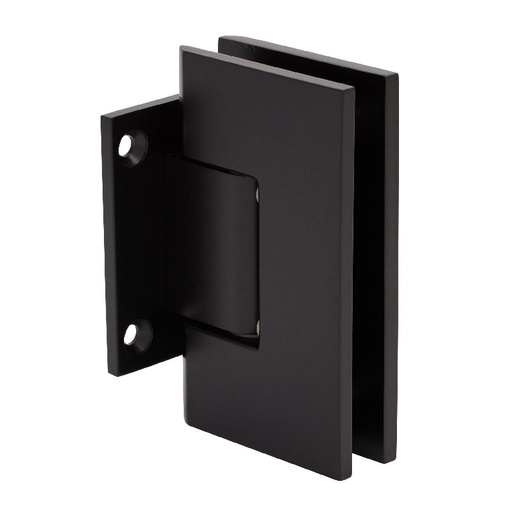

CRL Matte Black Vienna 074 Series Wall Mount Short Back Plate Hinge

Finish : Matte Black

Item #: V1E074MBL
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL Matte Black Vienna 074 Series Wall Mount Short Back Plate Hinge
×
CRL Matte Black Vienna 074 Series Wall Mount Short Back Plate Hinge
Quantity Price
Product Details
  • 5 Degree Pre-Set
    No
  • Adjustable
    No
  • Back Plate
    Short
  • Finish
    Matte Black
  • Glazing Thickness
    3/8, 1/2 IN
  • Height (Inches)
    3-15/16
  • Material
    Brass
  • Max Dr Weight - 2 Hinges (Lbs)
    100
  • Max Dr Weight - 3 Hinges (Lbs)
    130
  • Maximum Door Width - 1/2 Glass
    32
  • Maximum Door Width - 3/8 Glass
    34
  • Mounting Type
    Wall Mount
  • Self-Centering
    Yes
  • Series
    Vienna
  • Width (Inches)
    2-1/4
Product Overview

CRL Vienna Hinges are the solution for wider, heavier doors that traditional hinges are not strong enough to support. Two strategically placed steel pins inside the hinge provide template options, and satisfy two schools of thought for mounting shower door hinges. For the safety of "mouse-ears" type cut-outs, the two steel pins should be left in place. This allows the Vienna Hinge to be used with it's own CRL "mouse-ears" cut-out. On the other hand, to enable increased adjustability, the two pins can be removed. This allows the Vienna Hinge to fit it's own CRL rectangular shaped, square cornered cut-out. In some cases, it will also fit competitive rectangular shaped, square cornered cut-outs.
