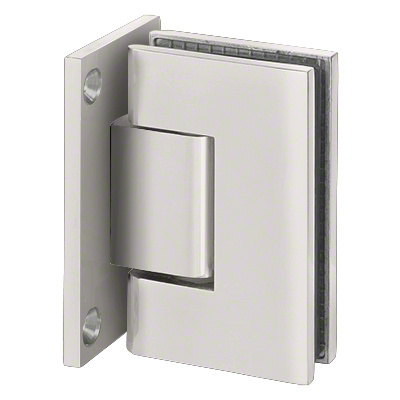

Satine Wall Mount with Full Back Plate Designer Series Hinge
×
Satine Wall Mount with Full Back Plate Designer Series Hinge
Quantity | Price |
---|
-
5 Degree Pre-SetNo
-
AdjustableNo
-
Back PlateFull
-
Edge ProfileSquare
-
FinishSatine
-
Glass Fabrication RequiredCutout
-
Glazing Thickness (Inches)1/2, 3/8
-
MaterialBrass
-
Max Door Weight-2 Hinges (Lbs)80
-
Max Door Weight-3 Hinges (Lbs)120
-
Max Door Width - 2 Hinges (IN)30
-
Max Door Width - 3 Hinges (IN)36
-
Mounting TypeGlass To Wall
-
Self-CenteringYes
-
SeriesDesigner
The Designer Full-Plate Series of professional Hinges is able to accommodate 3/8" (10 mm) to 1/2" (12 mm) glass. Designer Hinges are self-centering and contain a Reversible 5 ° Pivot Pin. Made of solid brass with all moving parts (pins and springs) in stainless steel.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting US Horizon Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Technical References
Templates
CAD Drawings - pdf
