CRL Oil Rubbed Bronze Geneva 245 Series 135 Degree Pony Wall Mount Hinge

Item #: GEN2450RB
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL Oil Rubbed Bronze Geneva 245 Series 135 Degree Pony Wall Mount Hinge
×
CRL Oil Rubbed Bronze Geneva 245 Series 135 Degree Pony Wall Mount Hinge
Quantity Price
Product Details
Product Overview

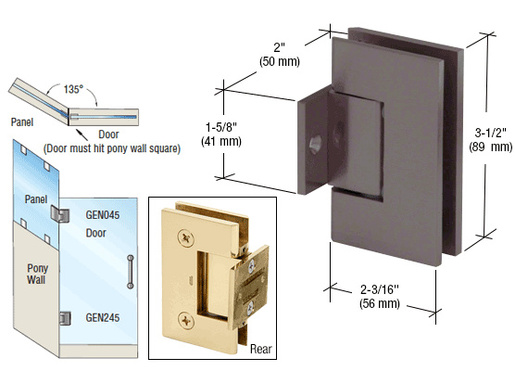

These CRL Geneva Pony Wall Mount Series hinges can be used in place of the standard wall-to-glass hinges normally utilized when using wall mount hinges on a pony wall, and glass-to-glass hinges above them. The GEN280 model is for use with 180 degree applications, while the GEN245 is for use with 135 degree applications. Previously in this application the tile or marble had to be cut to allow the wall mount hinge to be recessed. That adjustment aligned the pivot points between both hinges to allow proper installation. Geneva Pony Wall Mount Hinges are modified with a shortened center block (containing only one centering spring) and a small back plate (with only two mounting holes). Each hinge has the same Reversible 5 degree Pivot Pin as our standard Geneva Hinge.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting US Horizon Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Technical References
